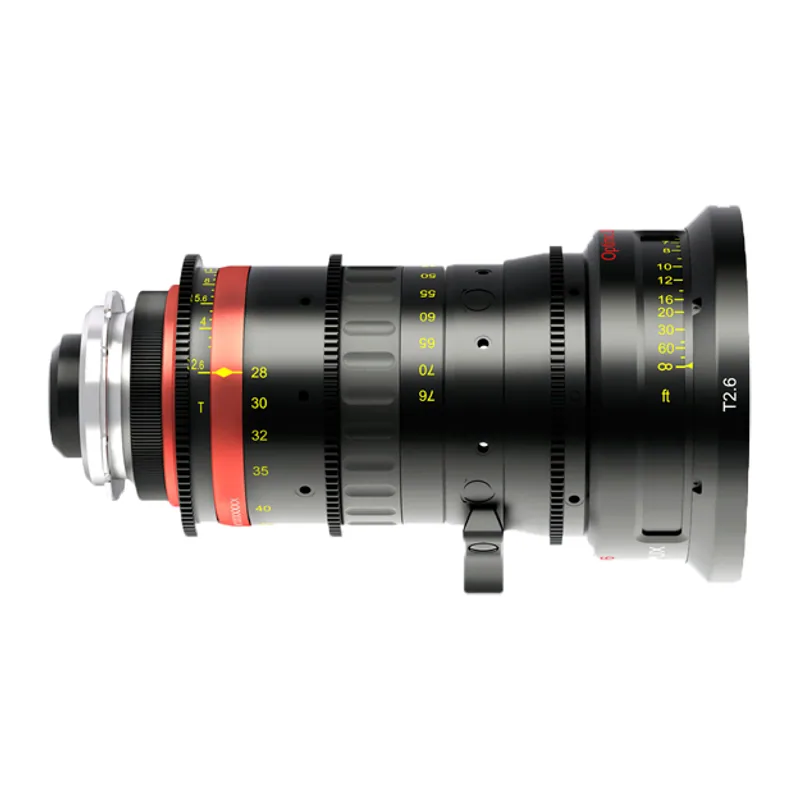

Angénieux Optimo 28-76mm

Key specs

Focal length

28–76 mm

Max aperture

T2.6

Mount

PL, Canon EF

Image circle

Super 35

Front diameter

114 mm

Weight

1.92 kg

From the manufacturer

Focal length

28-76 mm (2.7x)

Max aperture

T2.6

Mount

PL (EF/PV mount available)

Format coverage

S35+ (31.4 mm diagonal)

Front diameter

114 mm

Weight

1.92 kg

Source: angenieux.com. Spotted a mistake? Tell us.

Field of view by sensor

Full frame

65.5° – 26.6° horizontal · frames like 28 mm – 76 mm on full frame

Super 35

47.9° – 18.6° horizontal · frames like 40.5 mm – 109.9 mm on full frame

Micro Four Thirds

34.3° – 13° horizontal · frames like 58.3 mm – 158.2 mm on full frame

What it goes on

• PL camerasNativeALEXA 265, ALEXA 35, PYXIS 12K, PYXIS 6K +15 more
• Canon EF camerasNativeALEXA 265, ALEXA 35, ALEXA Mini LF, Pocket Cinema Camera 6K G2 +14 more
• Sony E camerasElectronic adapterRonin 4D-6K, Ronin 4D-8K, Alpha 1 II, Alpha 7 IV +13 more

  Metabones EF-E Smart Adapter · Sigma MC-11. Iris control and IS work; autofocus works on most lenses but is slower than native, and continuous video AF is hit-and-miss.

• Canon RF camerasElectronic adapterEOS C400, EOS C50, EOS C70, EOS C80 +10 more

  Canon Mount Adapter EF-EOS R · Canon Drop-In Filter Adapter (VND). Canon's own adapter: EF lenses behave natively, and the drop-in version adds a variable ND behind the lens.

• L-Mount camerasElectronic adapterCinema Camera 6K, PYXIS 12K, PYXIS 6K, Ronin 4D-6K +6 more

  Sigma MC-21. Iris and single-shot AF work; no continuous AF in video.

• Micro Four Thirds camerasElectronic adapterMicro Studio Camera 4K G2, Pocket Cinema Camera 4K, Lumix BGH1, Lumix GH6 +1 more

  Metabones EF-MFT Smart Adapter · Viltrox EF-M1. Iris control works; AF is slow. Remember the 2x crop — or use a Speed Booster.

• LPL camerasWith adapterALEXA 265, ALEXA 35, ALEXA Mini LF, URSA Cine 17K 65

  ARRI PL-to-LPL Adapter. ARRI's own adapter, passes LDS / Cooke /i lens data.

• Nikon Z camerasElectronic adapterKOMODO-X 6K S35, V-RAPTOR [X] 8K VV, V-RAPTOR XE

  Fringer EF-NZ · Techart TZC-01. Third-party electronic adapters — iris and AF work with most lenses, firmware dependent.

• Leica M camerasWith adapter· by flange mathsALEXA 265, ALEXA 35, ALEXA Mini LF, Ronin 4D-6K +1 more

  24.2 mm of room for a plain ring. Check rear-element and mirror clearance before buying.

• B4 (2/3") camerasWith adapter· by flange mathsURSA Broadcast G2, URSA Mini Pro 4.6K G2, AJ-CX4000

  4 mm of room for a plain ring. Check rear-element and mirror clearance before buying.

• Nikon F camerasWith adapter· by flange mathsURSA Mini Pro 12K, URSA Mini Pro 12K OLPF, URSA Mini Pro 4.6K G2

  5.5 mm of room for a plain ring. Check rear-element and mirror clearance before buying.

See every camera this lens fits →
